Description

POWER
Motor Type: Air-cooled induction motor
Rated Power: 4.0 kW @ 5,200 rpm
Maximum Power: 10.7 kW @ 2,000 rpm
Maximum Torque: 37.6 lb-ft @ 2,000 rpm
Maximum Speed: 19 mph
Battery Type: Lead acid Trojan T-875 (x6)
Battery Voltage/Capacity: 48 volts
Battery Range (est.): Up to 25 miles
Battery Charge Time: Approx. 11 hours (0-100%)
Transmission Type: Primary reduction gear with Forward/Neutral/Reverse
Final Drive: 2WD
Regenerative System: Yes
CAPABILITY
Front Suspension: MacPherson strut
Rear Suspension: Leaf springs with hydraulic shock absorbers

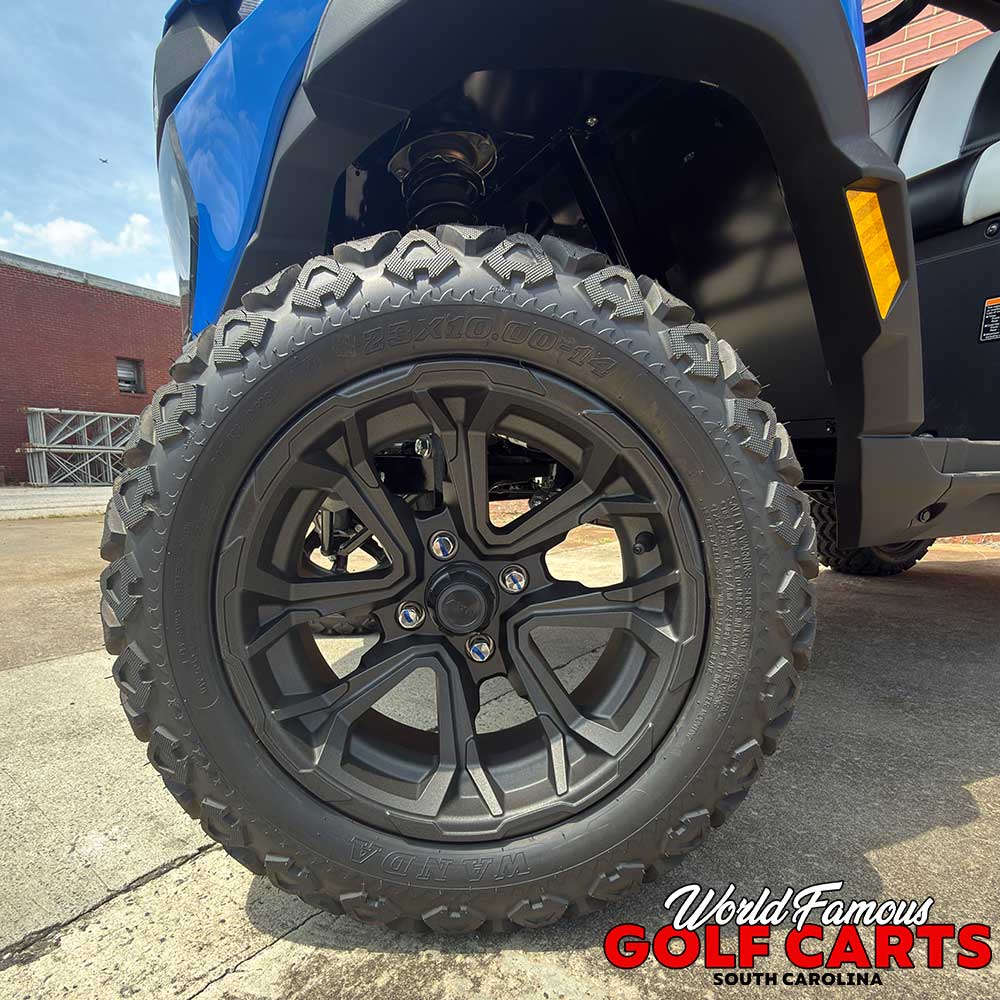

Front Tires: 23 x 10-14
Rear Tires: 23 x 10-14
Wheel Type: 14″ aluminum, machined finish with chrome center cap
Steering: Rack-and-pinion
Front Brakes: N/A
Rear Brakes: 160mm drum
Ground Clearance: 7.3 in
Turning Radius: 12.8 ft
Cargo Bed Dimensions (LxWxH): 31.0 x 40.3 x 0.9 in
Cargo Bed Load Capacity: 150 lb
Payload Capacity: 800 lb
Seating Capacity: 4-person (2 row)
Towing Capacity: 500 lb
Lighting: All-LED lighting
DETAILS
Frame: Ladder type, tubular steel
Overall Length: 119.5 in
Overall Width: 51.6 in
Overall Height: 77.6 in
Dry Weight: 1,047.4 lb**
Curb Weight: 1,049.6 lb*
Wheelbase: 79.9 in

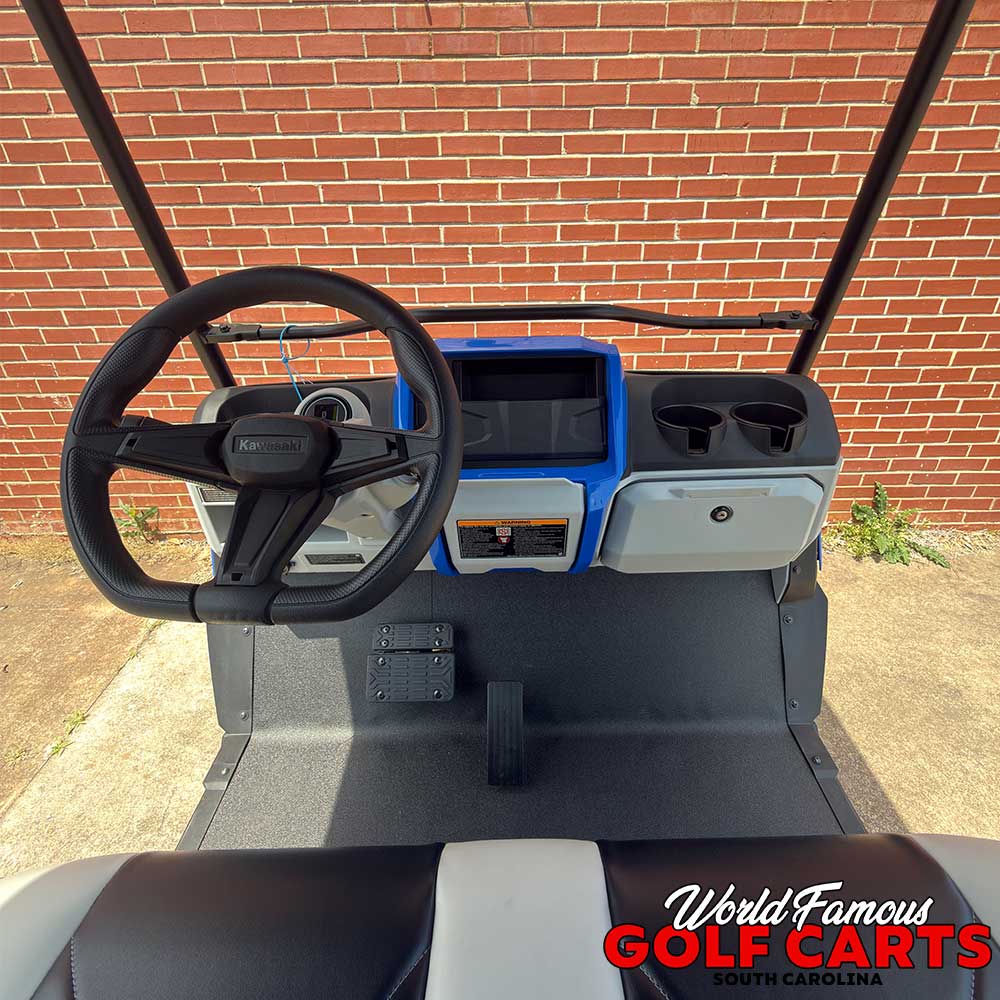

Instruments: Forward/reverse/neutral indicator, hour meter, battery pack charge level, and turn signal indicator
